Architecture Overview¶

Quad-SDK is a layered, message-driven stack. Each layer is a ROS 2 package with clear input/output topics, so individual layers can be swapped or studied in isolation.

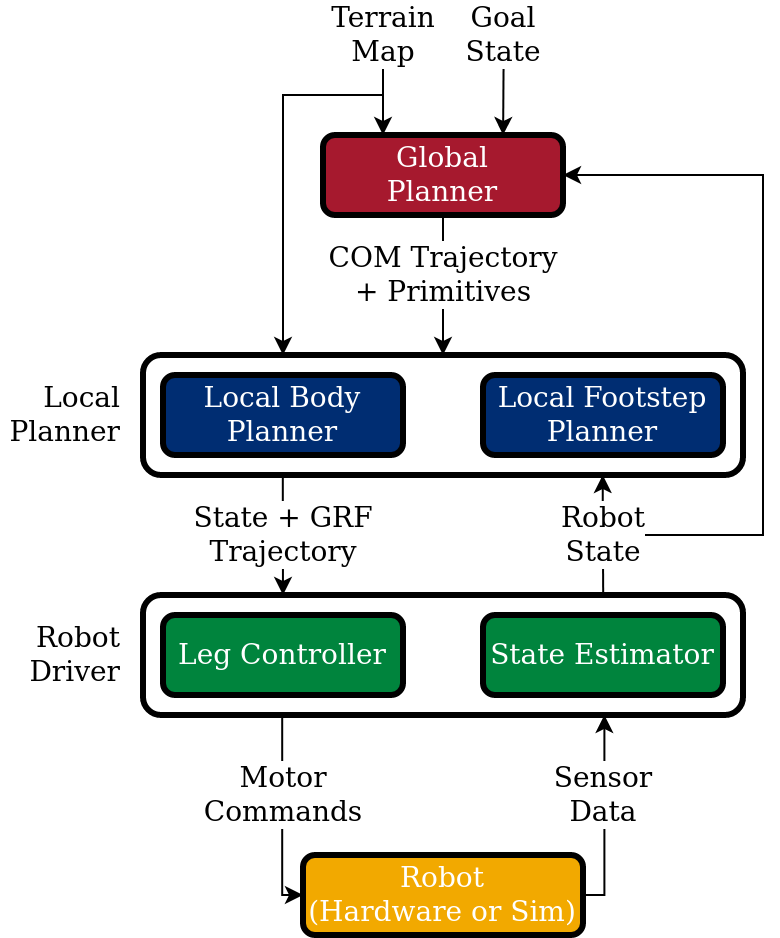

The hierarchy¶

flowchart TB
  subgraph PERCEPTION[Perception]
    TM[terrain_map]
  end

  subgraph PLAN[Planning]
    GP[global_body_planner<br/>RRT-Connect + leaps]
    LP[local_planner<br/>NMPC body + Raibert footstep]
    NMPC[(nmpc_controller<br/>library)]
  end

  subgraph CONTROL[Control + estimation]
    RD[robot_driver<br/>control loop]
    EKF[state_estimator<br/>EKF]
    BFE[body_force_estimator]
  end

  subgraph EXEC[Execution]
    HW[hardware_interface]
    SIM[Gazebo / MuJoCo]
  end

  TM --> GP
  TM --> LP
  GP -- global_plan --> LP
  LP -- local_plan --> RD
  LP <-.uses.-> NMPC
  RD -- joint_cmd --> HW
  RD -- joint_cmd --> SIM
  HW -- joint_state, imu --> EKF
  SIM -- joint_state, imu --> EKF
  EKF -- state/ground_truth --> LP
  EKF -- state/ground_truth --> GP
  EKF -- state/ground_truth --> RD
  EKF -- state/ground_truth --> BFE
  RD -- joint_cmd --> BFE
  BFE -- external_wrench --> LP

Layer summary¶

Layer	Frequency	What it produces	Where it lives
Multi-robot coordination (optional)	per goal change	Conflict-free per-robot global plans	`conflict_based_search`
Global plan	5–20 Hz	Path of body states + GRFs to a goal	`global_body_planner`
Local plan	333 Hz	26-step NMPC body plan + footstep schedule	`local_planner`
NMPC	called per local-plan tick	OCP solution (states, GRFs)	`nmpc_controller`
Control	1 kHz	Per-joint torque/PD commands	`robot_driver`
Estimation	1 kHz	Body state + foot contacts	`robot_driver`
External wrench	100 Hz	Disturbance estimate	`body_force_estimator`
Simulation	1–2 kHz	Joint states, IMU, contacts	`quad_simulator`

For multi-robot scenarios, the conflict_based_search node sits above the per-robot global planners and coordinates them via the plan_with_constraints service. See the Multi-Robot tutorial.

Topic conventions¶

All robot-scoped topics are namespaced as /robot_<id>/<topic>. Multi-robot configs (see CBS demos) replicate the full stack under each namespace.

Topic	Type	Producer → Consumer
`state/ground_truth`	`quad_msgs/RobotState`	estimator → planners, driver
`global_plan`	`quad_msgs/RobotPlan`	global → local planner
`local_plan`	`quad_msgs/LocalPlan`	local planner → driver
`foot_plan_continuous`	`quad_msgs/MultiFootPlanContinuous`	local planner → driver
`terrain_map`	`grid_map_msgs/GridMap`	perception → planners
`cmd_vel`	`geometry_msgs/Twist`	user → local planner
`control/mode`	`std_msgs/UInt8`	user → driver

Full message definitions: quad_msgs.

Launch composition¶

The runtime is composed by launch files under quad_utils/launch/ rather than monolithic config:

# Single-robot
quad_gazebo.py ─┐
                ├── robot_bringup.py ── robot_driver.py
quad_mujoco.py ─┘                       (per-robot)

quad_plan.py ──── planning.py ──── global_body_planner_node
                                ├── local_planner_node
                                ├── body_force_estimator (optional)
                                └── logging (optional)

# Multi-robot
quad_multi_gazebo.py ── robot_bringup.py × N      (one per robot)

multi_robot.py  ──── planning.py × N              (per-robot stacks)
                ├── conflict_based_search_node    (central coordinator)
                └── logging_cbs.py × N            (optional, --logging_cbs:=true)

Single-robot scenarios pass a robot_configs JSON list with one entry; multi-robot scenarios pass an N-robot list with each robot's goal_state field set. robot_bringup.py iterates and stamps namespaces. The CBS coordinator only runs in the multi-robot path. See:

quad_utils/launch/quad_gazebo.py (single)
quad_utils/launch/quad_multi_gazebo.py (multi)
quad_utils/launch/multi_robot.py (per-robot planning + CBS)
quad_utils/launch/logging_cbs.py (per-robot CBS-debug bagging)

Module deep-dives¶

ROS 2 migration — what changed from ROS 1, what to update if you're porting code.
Pinocchio integration — how the kinematics/dynamics layer was rewritten.

Design choices worth knowing¶

Why NMPC as a library?

nmpc_controller builds a CasADi/IPOPT solver once at startup and exposes a synchronous solve(). The local planner calls it directly so we avoid the latency and brittleness of a separate ROS node round-trip per control tick.

Why split global vs. local planning?

Global search (~hundreds of milliseconds, RRT-Connect) and local refinement (~3 ms, NMPC) live on different timescales. Splitting them lets each be tuned and replaced independently.

Why include both Gazebo and MuJoCo?

Gazebo is feature-rich (sensors, physics plugins, fluid contact). MuJoCo is fast, deterministic, and renders without a GPU — ideal for headless training rigs and perf tests.
